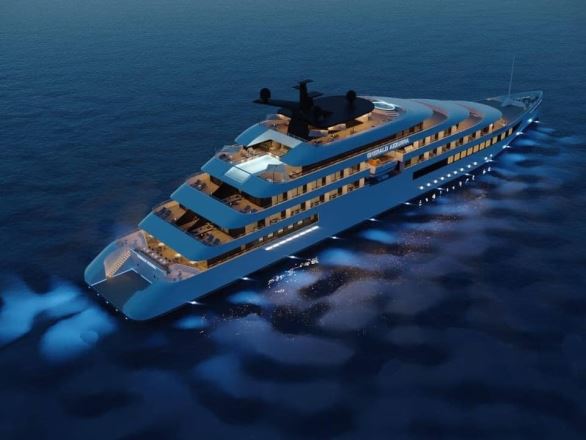

A modern yacht built at Ha Long Shipbuilding

Ha Long Shipbuilding Company is proud to contribute to this beautiful masterpiece
  GENERAL DESCRIPTION
       The Vessel is intended to be a modern yacht-like passenger cruise ship, to operate on international voyages in accordance with Vessel's description as per Specification..
        The Vessel is to be twin screw with vertical stem, bulbous bow and a transom stern.
The main machinery consists of two high-speed diesel engines of abt.1490 kW (each), each driving a fixed pitch propeller through a gearbox .  Electric station consists of 3 diesel driven generators.
        The hull under bulkhead deck to be divided by 10 watertight transverse bulkheads.
Accommodation to be arranged for 100 passengers in 50 cabins and 64 crew and other in 41 cabins.
In addition, vessel is outfitted with:
Two (2) rudders
One (1) pair of retractable fin stabilizers
One (1) bow thruster

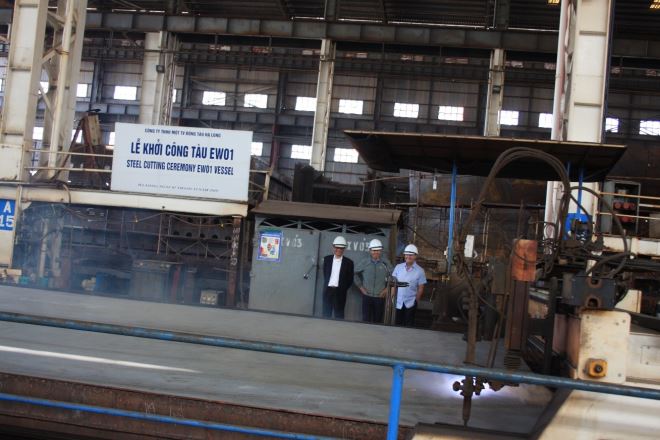

Steel catting ceremony EW-01 vessel

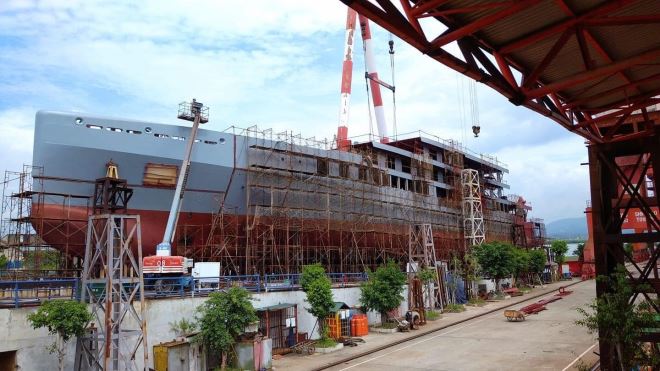

The ship before launching

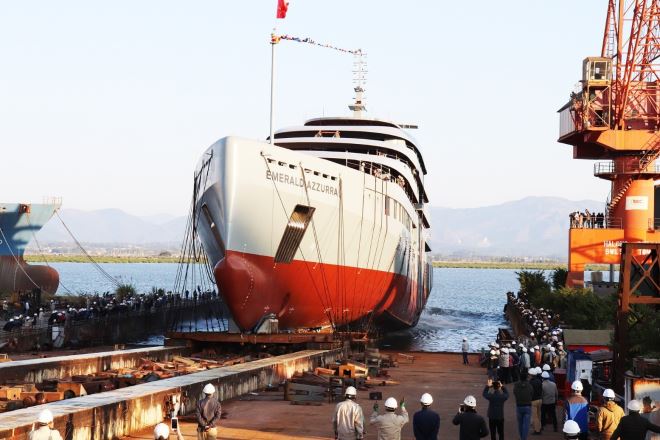

The ship is going into the water

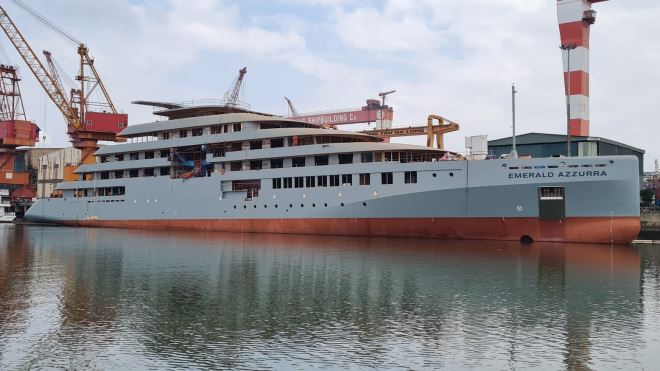

The ship has been launched

STRUCTURAL MEASUREMENTS
Deck heights above B.L.
Double bottom (Deck 1)      1.60 m
Lower deck    (Deck 2)         4.60 m
Main deck      (Deck 3)         7.50 m
Upper deck    (Deck 4)         10.70  m
Bridge deck   (Deck 5)         13.50 m
Pool deck      (Deck 6)         16.30 m
Top deck       (Deck 7).......................................19.10m

.

The ship will be completed in the near future
